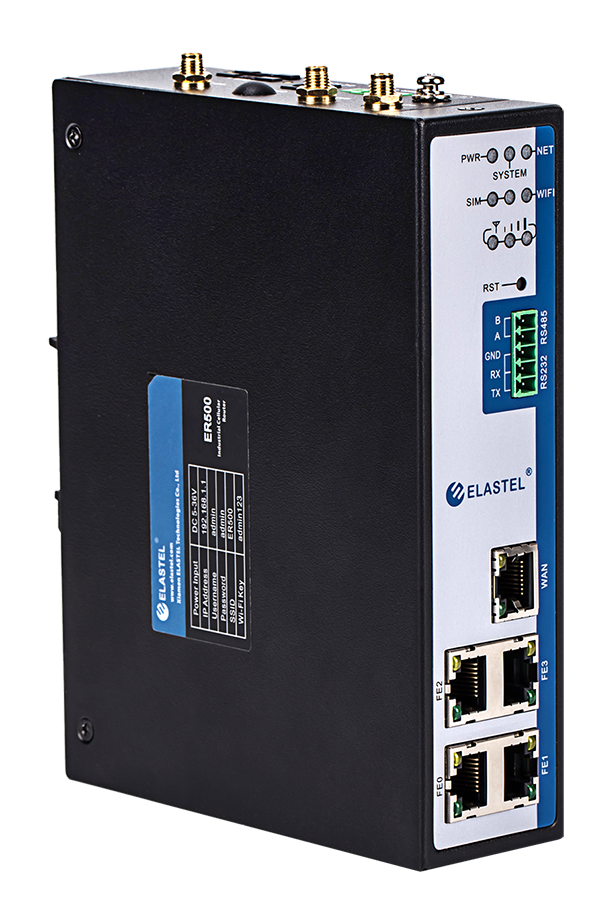

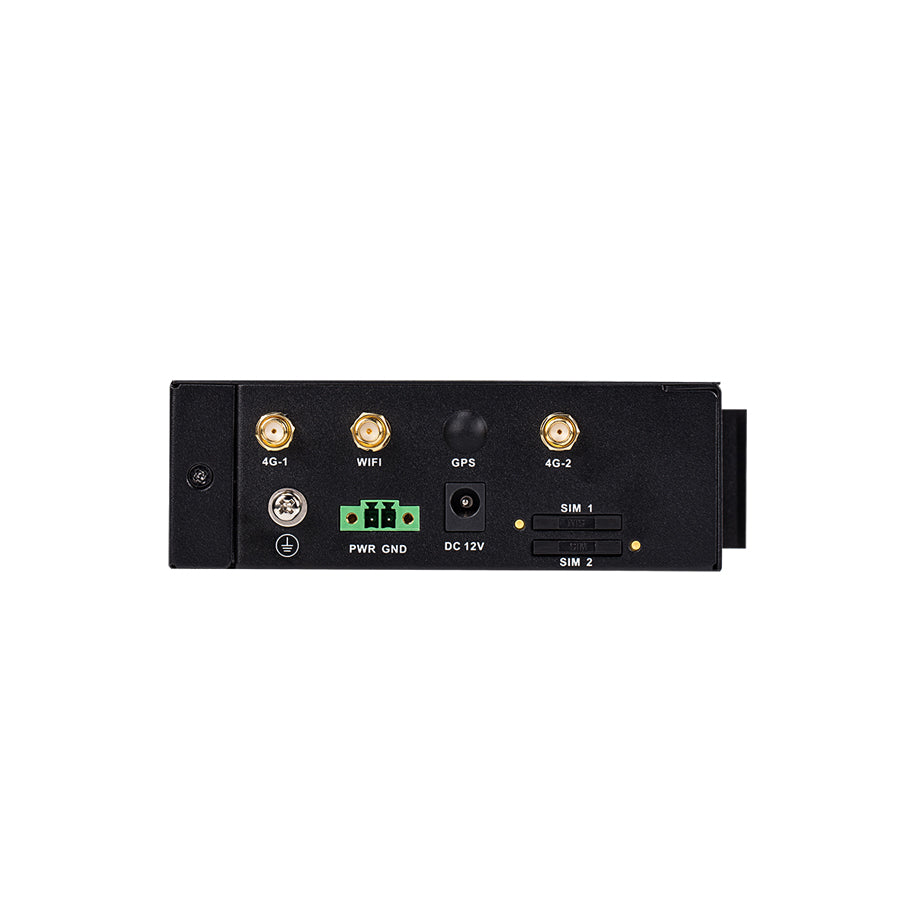

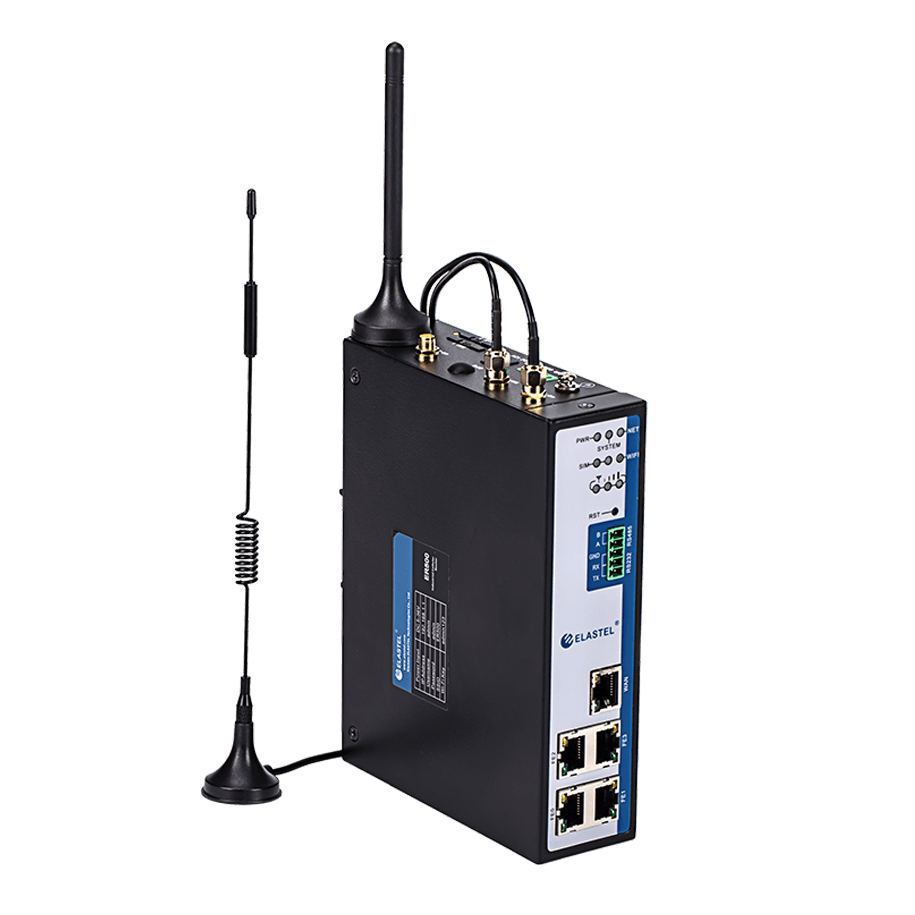

ER500 Industrial Dual-SIM Cellular Router
$1.417.000,00
Envío calculado en el pago.
El Router celular industrial serie Elink ER500 de Elastel, es un enrutador celular dual-SIM que integra 4G LTE global, con 5 puertos Ethernet de 10/100 Mbps y soporte Wi-Fi, también puertos seriales extendidos 1xRS232 y 1xRS485 para usos industriales

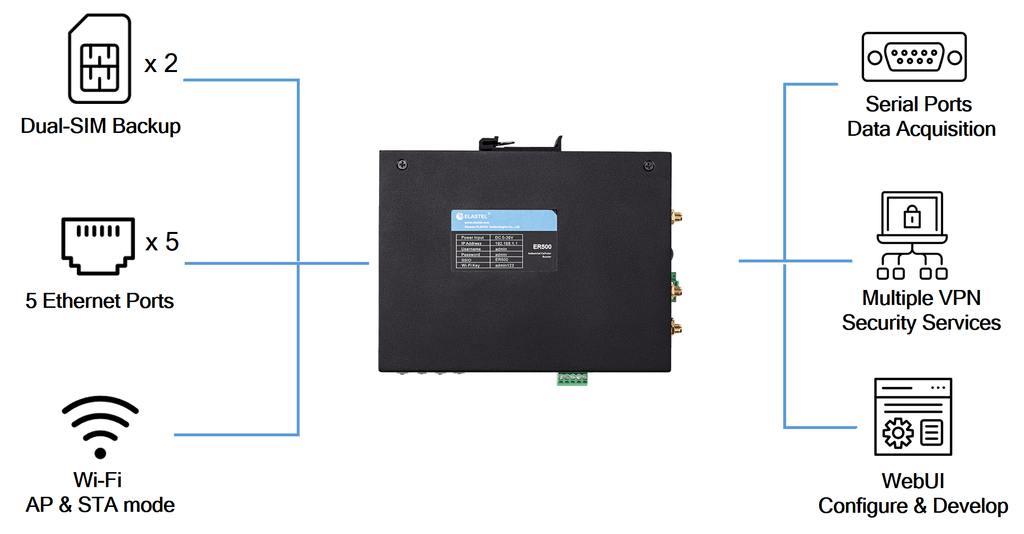

- Dual-SIM seamlessly failover for Global 4G LTE/ 3G/ 2G networks
- 5x 10/100 Mbps ETH ports (1-WAN 4-LAN, or 5-LAN), Wi-Fi integrated
- Easy-to-use webUI with prebuilt Serial-to-IP data SCADA features
- -35°C to +75°C Operating Temperature, Industrial rugged and reliablity
Tiempo de Entrega - 4 Semanas
DESCRIPCIÓN
Diseñado para admitir doble SIM en redes 4G LTE globales, el ER500 alterna fácilmente entre tarjetas SIM para garantizar una conectividad y fiabilidad ininterrumpidas. Ofrece 5 puertos ETH, Wi-Fi, puertos serie y un sistema operativo configurable basado en OpenWRT, lo que permite una transmisión de datos fluida y compatibilidad con una amplia gama de dispositivos en todo tipo de aplicaciones industriales.

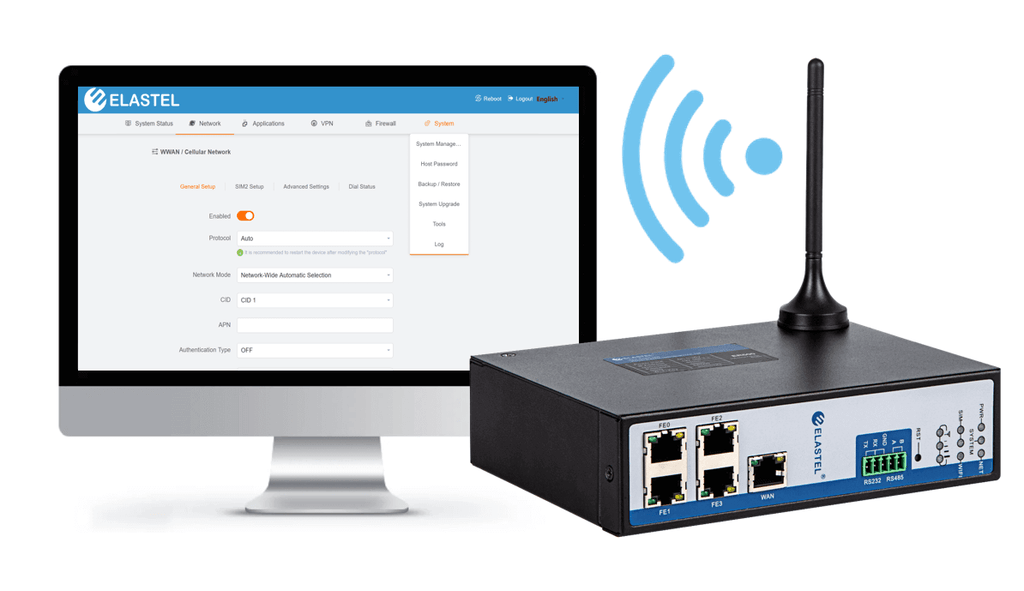

FIRMWARE DE GESTIÓN WEB SENCILLA

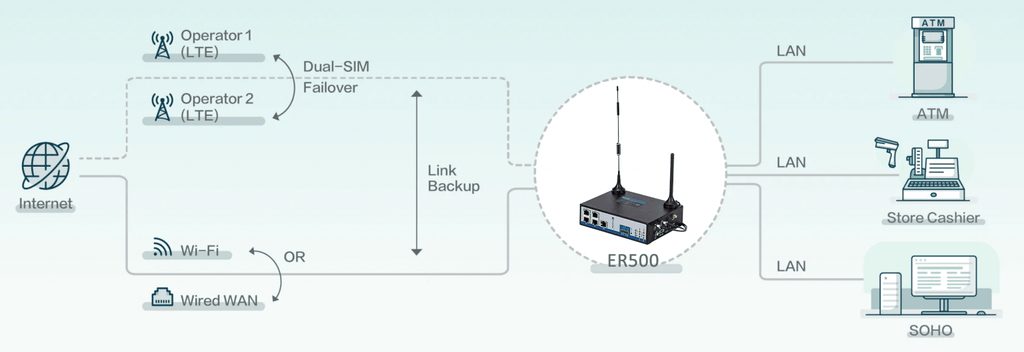

Red ininterrumpida de alta confiabilidad
Con conmutación por error de doble SIM y tecnología de respaldo Elastel Elink Seamlessly, ER500 proporciona una conectividad ininterrumpida para maximizar su productividad y eliminar el tiempo de inactividad.
Con conmutación por error de doble SIM y tecnología de respaldo Elastel Elink Seamlessly, ER500 proporciona una conectividad ininterrumpida para maximizar su productividad y eliminar el tiempo de inactividad.
DISEÑO TOTALMENTE INDUSTRIAL
Desde cada componente electrónico hasta el diseño estructural, el ER500 está diseñado para la industria y garantiza la máxima fiabilidad en condiciones industriales adversas.
* Temperatura de funcionamiento: de -35 °C a +75 °C
* Protección contra descargas electrostáticas (ESD) de 15 kV, compatibilidad electromagnética (EMC) de 1,5 kV y sobretensiones de 2 kV
* Protección contra sobrecorriente/tensión y antirretroceso
* Montaje en carril DIN y panel
* Reloj de tiempo real (RTC) y temporizador de tiempo de retardo (WDT) externos, MTBF ≥100 000 horas
* Temperatura de funcionamiento: de -35 °C a +75 °C
* Protección contra descargas electrostáticas (ESD) de 15 kV, compatibilidad electromagnética (EMC) de 1,5 kV y sobretensiones de 2 kV
* Protección contra sobrecorriente/tensión y antirretroceso
* Montaje en carril DIN y panel
* Reloj de tiempo real (RTC) y temporizador de tiempo de retardo (WDT) externos, MTBF ≥100 000 horas
INTERFAZ
Aproveche la interfaz de configuración web del ER500 para una configuración e implementación a gran escala fáciles y rápidas.
* Sistema operativo optimizado basado en OpenWRT con preajustes de configuración comunes.
* Múltiples VPN y aplicaciones comunes disponibles.
* Configuración web visible para las funciones de adquisición de datos Modbus serie a IP.
* Fácil gestión remota e interoperabilidad mediante SNMP y MQTT.
* Sistema operativo optimizado basado en OpenWRT con preajustes de configuración comunes.
* Múltiples VPN y aplicaciones comunes disponibles.
* Configuración web visible para las funciones de adquisición de datos Modbus serie a IP.
* Fácil gestión remota e interoperabilidad mediante SNMP y MQTT.
| Especificaciones Técnicas | |
|---|---|
| Plataforma de Hardware | |
| CPU | MediaTek@ 580MHz |
| DRAM | 128MB DDR2 |
| Storage | 32MB |
| Cellular module Slots | 1 x mPCIe slot for Cellular module |
| Wireless | |
| SIM Slot | 2 x Mini SIM (25mm*15mm); 15KV ESD protection |
| Band Options | 4G LTE FDD@ B2/B4/B12/B13; 3G WCDMA@ B2/B4/B5; Carrier Approval: Verizon, AT&T EMEA/APAC: 4G LTE FDD@ B1/B3/B7/B8/B20/B28A; 4G LTE TDD@ B38/B40/B41; 3G WCDMA@ B1/B8; 2G GSM@ B3/B8; ANZ/LATAM: 4G LTE FDD@ B1/B2/B3/B4/B5/B7/B8/B28; 4G LTE TDD@ B40; 3G WCDMA@ B1/B2/B5/B8; 2G GSM@ B2/B3/B5/B8; Otra opcion favor contactar a OTECHPRO |
| Wi-fi | IEEE 802.11b/g/n, 150Mbps |
| Wi-fi Mode | Support AP and Client modes |
| Ethernet Ports | 5 x 10/100 Mbps Ethernet for LAN/WAN configurable; 1.5KV network isolation transformer protection; |
| Serial Ports | 1-RS232, 1-RS485; 5-PIN industrial terminal block; 15kV ESD protection; |
| Interfaces | |
| Reset Button | 1x Pinhole reset button |
| Power Parameters | |
| Power Supply | DC9 ~ 36V, over-current protection, anti-reverse connection; 2 PIN terminal block and Jack connector; |
| Power Consumption | 512 MB Flash |
| LED Indicators | 9 LEDs ( Power, System, NET, SIM1/SIM2, WiFi, 3x Signal Strength) |
| Dimensions | 126 × 44 x 166 mm (L×W×H) |
| Indicators | |
| Housing | IP30 Metal |
| Installation | DIN-rail mounting Panell mounting |
| Weight | 670g |
| Physical Characteristics | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -35 to 75°C (-31 to 167°F) |
| Environmental Limits | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Alert Tools | External RTC with Backup button battery |
| Automatic Reboot Trigger | Hardware WDT (watchdog timer) |
| Device | 1 x ER500 device with Terminal Block preinstalled |
| Reliability | |
| Antenna | 2x Mag-mount Cellular Antenna (SMA Male, 1 meter, 12dBi), 1x RP-SMA WIFI Antenna |
| Installation Kit | Panel mount kits (DIN-rail mount kits optional) |
| Power Adapter | DC 12V/1A (optional) |
| Package Contents | |
| OS | ElastOS (OpenWRT based) with Serial-to-IP Data Acquisition programs |
| Configuration management | WebUI, Local CLI, Remote configuration, factory reset/backup, Syslog local/remote export |
| Gestión y Configuración | |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH… |
| VPN | PPTP, L2TP, GRE, IPSEC VPN (IKEv1/IKEv2), OPENVPN protocols, Supports CA digital certificate |
| Serial to IP | Modbus RTU/TCP Data acquisition, MQTT, HTTP, OPC UA |
| Reliability & Security | WWAN and WAN Failover, multi-layer detection and auto recovery mechanism, firewall, ACL, port mapping, virtual IP mapping, IP-MAC binding |
| Secondary Development | OpenWrt based OS with SDK support |
| Garantía | |
| Periodo de Garantía | 1 Año |
Datasheet
Descargar Manual
