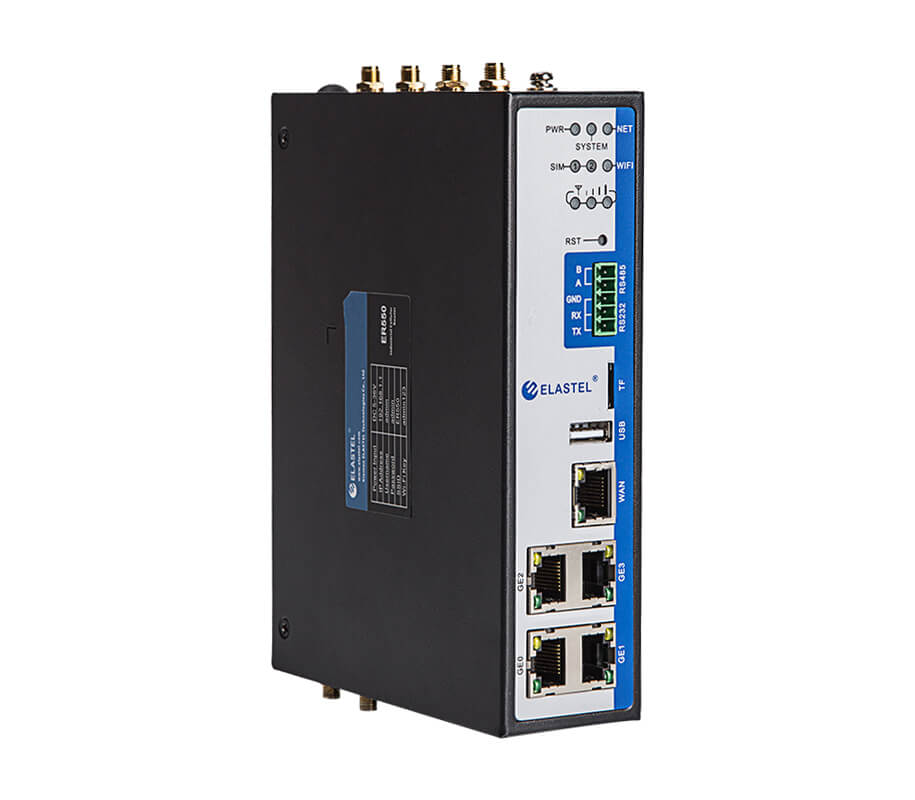

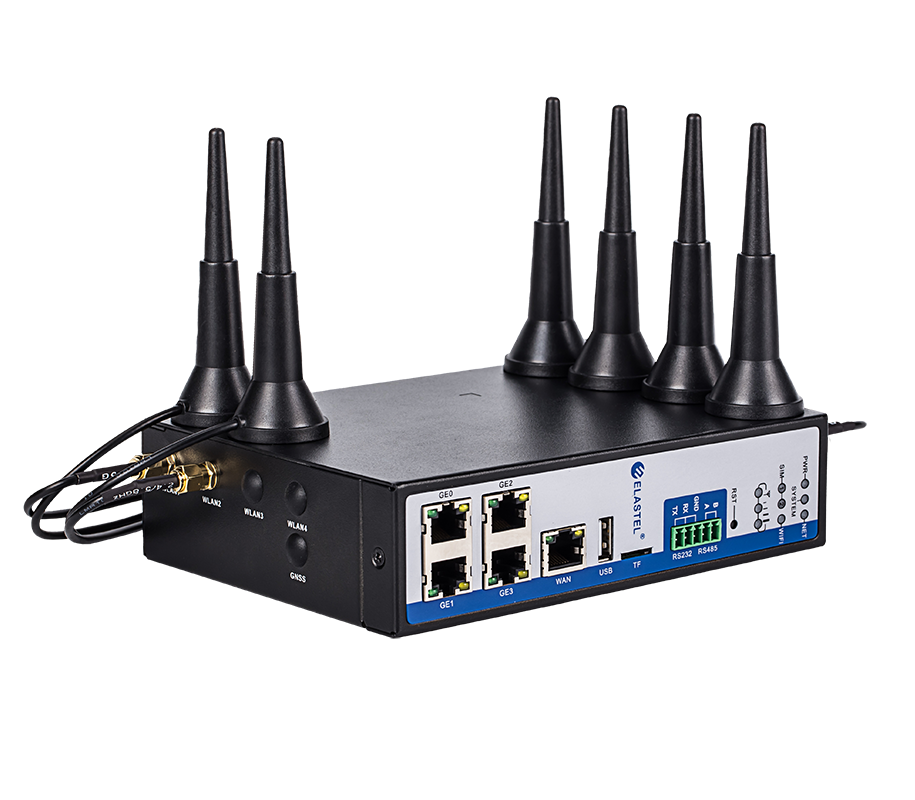

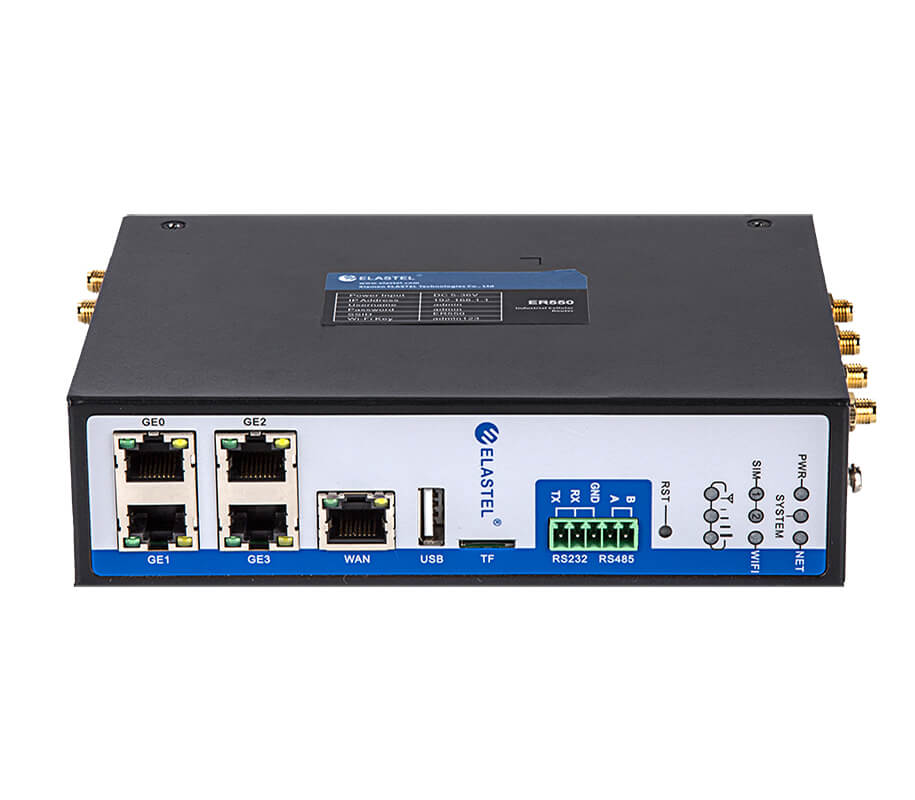

ER500-FFM16 Industrial Dual-SIM 5G Router
$3.360.000,00
Envío calculado en el pago.
El Router celular industrial 5G serie Elink ER500 de Elastel, es un enrutador celular dual-SIM que integra 4G LTE global, con 5 puertos Ethernet de 10/100 Mbps y soporte Wi-Fi, también puertos seriales extendidos 1xRS232 y 1xRS485 para usos industriales

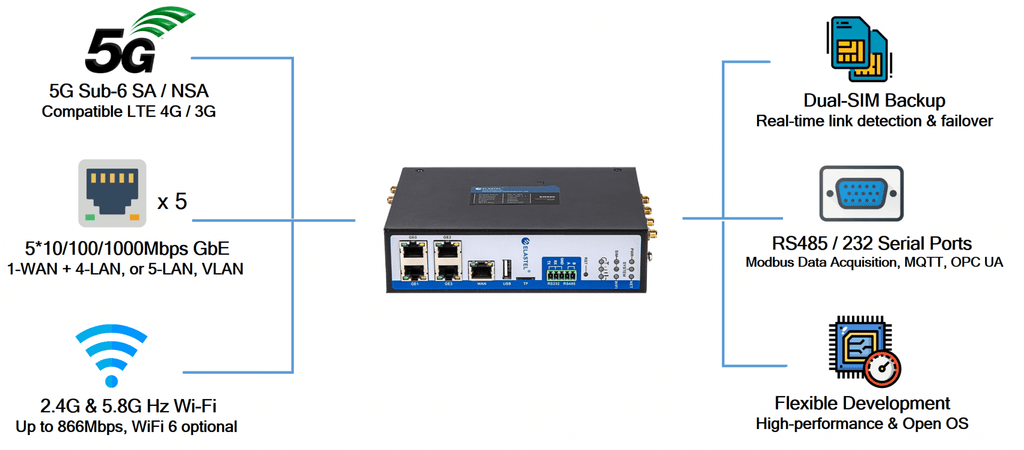

- Dual-SIM seamlessly failover for Global 5G/ 4G LTE/ 3G cellular networks
- 5x 10/100/1000 Mbps Gigabit Ethernet ports (1-WAN 4-LAN, or 5-LAN)
- 2.4G & 5.8G Hz Dual-band Wi-Fi, Up to 866.7Mbps speed
- Dual-core ARM Cortex-A53@ 1GHz CPU, 512MB RAM + 4GB eMMC, with OpenWrt based OS
- Industrial rugged and reliablity, -35°C to +75°C Operating Temperature
Tiempo de Entrega - 4 Semanas
DESCRIPCIÓN
El ER550 es un router celular industrial 5G diseñado por Elastel. Equipado con una CPU ARM de doble núcleo de alto rendimiento a 1 GHz, 512 MB de RAM y una plataforma de hardware flash eMMC 4G, aprovecha la tecnología 5G de alta velocidad, 5 puertos Gigabit Ethernet, Wi-Fi de doble banda de 2,4 GHz y 5,8 GHz, y un mecanismo de conmutación por error/respaldo de doble SIM, el ER550 proporciona una red de alta velocidad, fiable e ininterrumpida para su infraestructura edge.
APLICACIONES

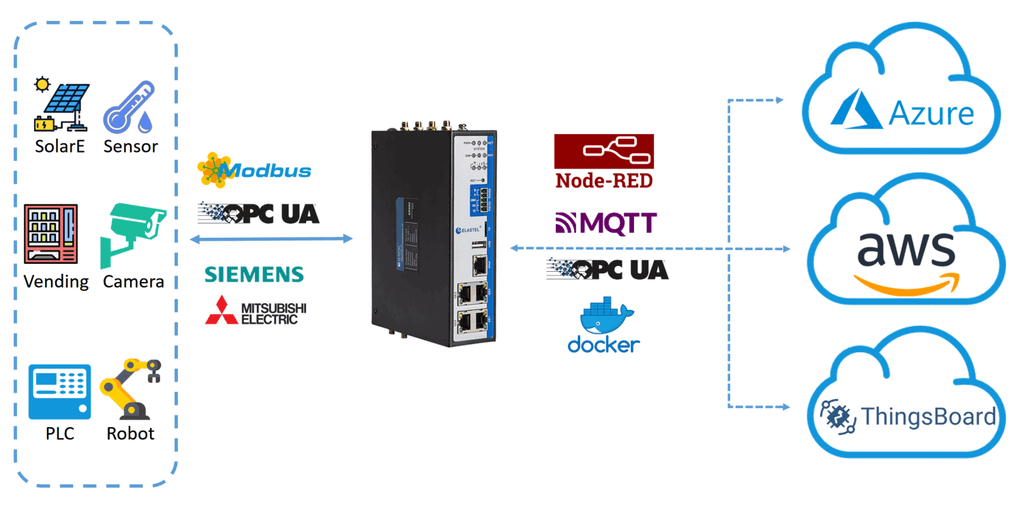

Además, los programas de adquisición de datos 1xRS485 + 1xRS232 extendidos con Modbus prediseñado y protocolos industriales comunes, que también se ejecutan en un sistema operativo basado en OpenWrt que ofrece una capacidad de programa secundario flexible, hacen del ER550 no solo un enrutador 5G de alta velocidad, sino también un potente Gateway IIoT para sus aplicaciones de comunicación y procesamiento de datos industriales.

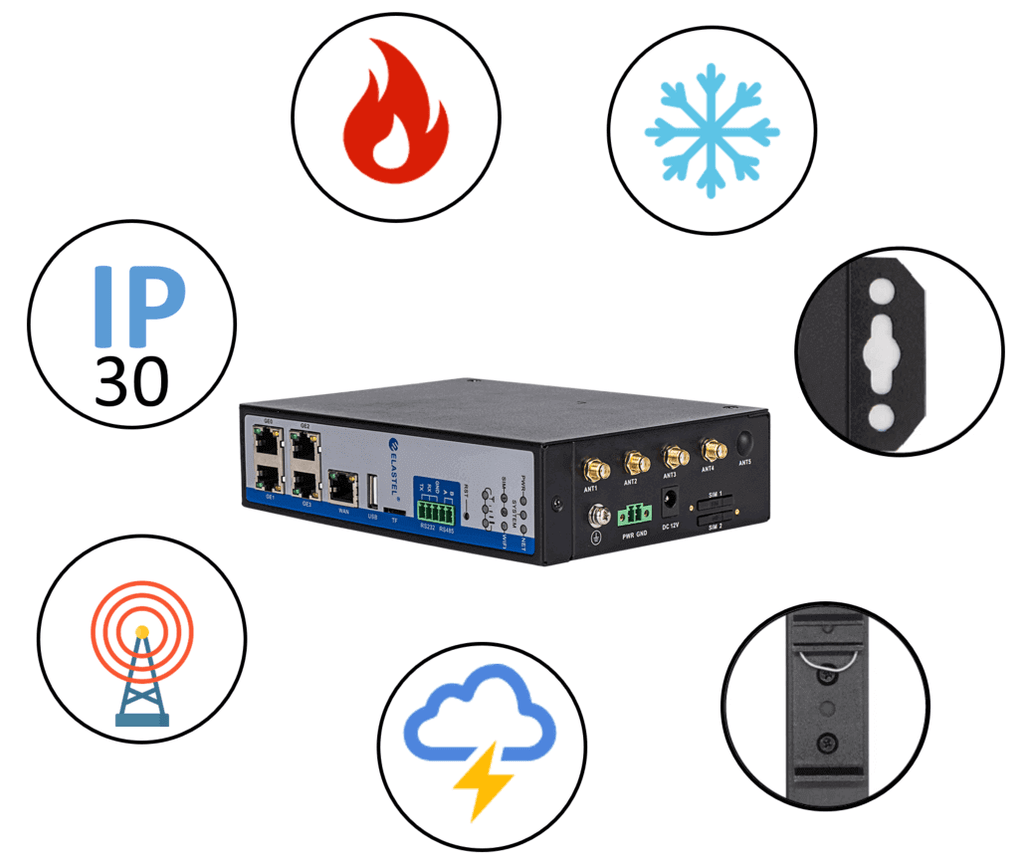

CALIDAD INDUSTRIAL
Con la calidad y la fiabilidad como prioridad, el ER550 está diseñado para aplicaciones industriales.
Temperatura de funcionamiento: de -35 °C a +75 °C
15 kV ESD, 1,5 kV EMC, 2 kV Protección contra sobretensiones
Ancho de entrada de 9-36 VCC con protección contra sobrecorriente/tensión y antirretroceso
Diseño de doble SIM, doble entrada de alimentación y doble redundancia de montaje (carril DIN y panel)
Reloj de tiempo real (RTC) y temporizador de tiempo de retardo (WDT) externos, MTBF ≥100 000 horas
Temperatura de funcionamiento: de -35 °C a +75 °C
15 kV ESD, 1,5 kV EMC, 2 kV Protección contra sobretensiones
Ancho de entrada de 9-36 VCC con protección contra sobrecorriente/tensión y antirretroceso
Diseño de doble SIM, doble entrada de alimentación y doble redundancia de montaje (carril DIN y panel)
Reloj de tiempo real (RTC) y temporizador de tiempo de retardo (WDT) externos, MTBF ≥100 000 horas
| Especificaciones Técnicas | |
|---|---|
| Plataforma de Hardware | |
| CPU | Dual-core ARM Cortex-A53@ 1Ghz |
| DRAM | 512MB DDR3 |
| Storage | 4GB eMMC |
| Celullar | 5G Sub-6 SA/NSA, 4G LTE, 3G WCDMA |
| Wireless | |
| SIM Slot | Dual SIM, 15KV ESD protection |
| Wifi | Dual Band 2.4GHz & 5.8GHz Wi-Fi |
| Wifi 6 | Optional |

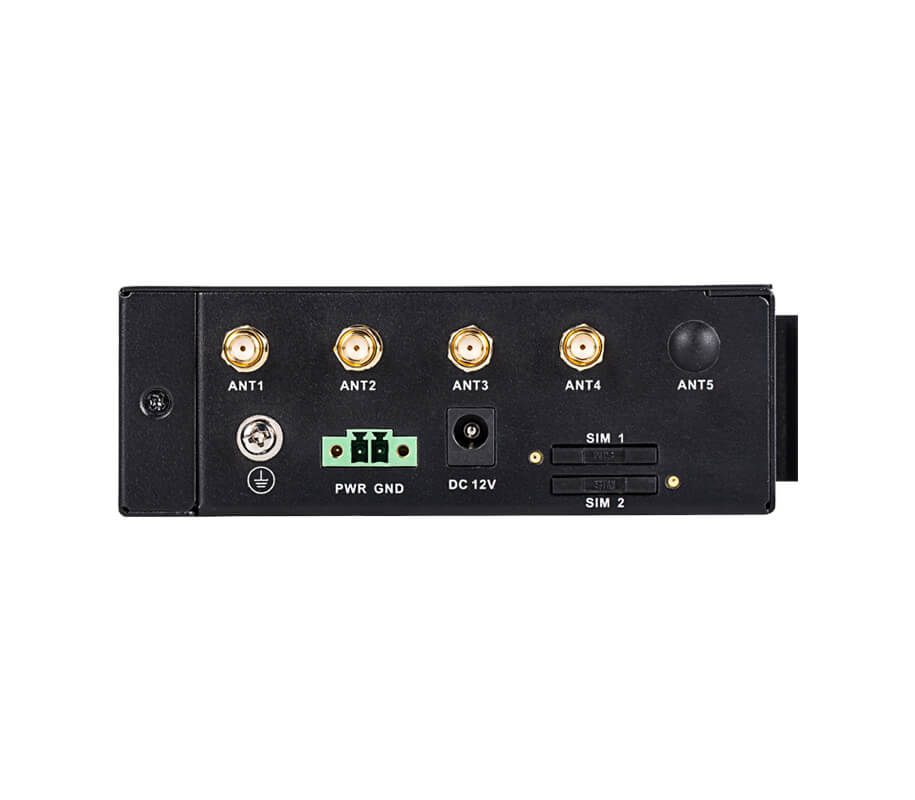

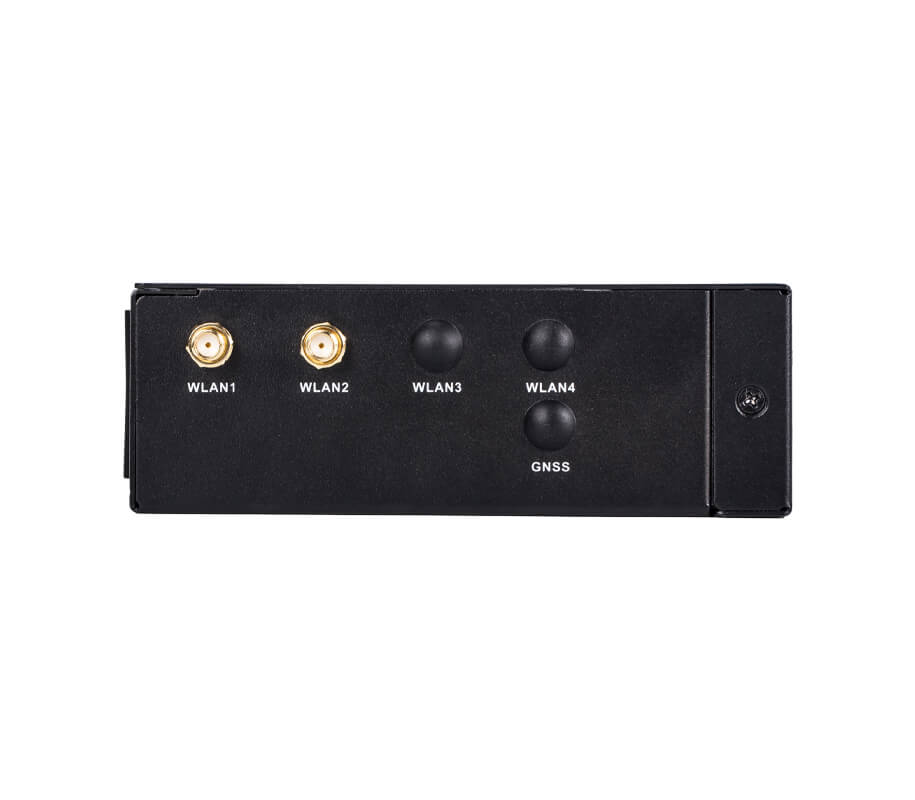

| Antenna Connector | 4x 5G/4G Cellular SMA, 2x Wi-Fi SMA (3 Reserved for extra Wi-Fi and GPS) |

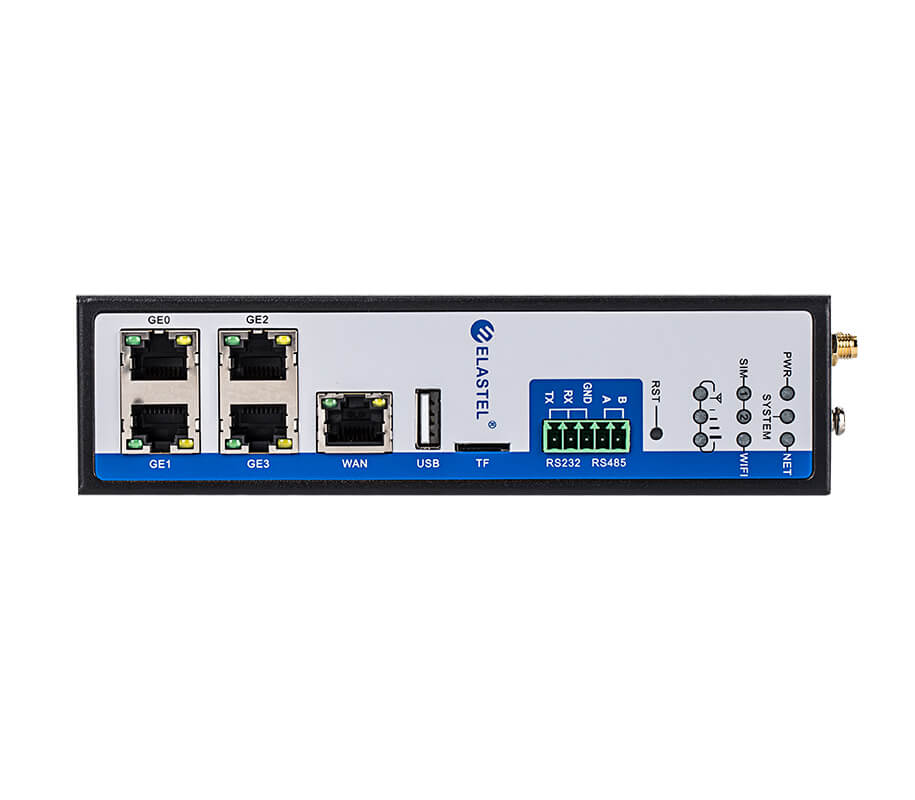

| Ethernet Port | 5 x 10/100/1000 Mbps GbE for LAN/WAN configurable; 1.5KV network isolation transformer protection; |
| Serial Port | 1-RS232, 1-RS485; 5-PIN industrial terminal block; 15kV ESD protection; |
| Interfaces | |
| USB Port | 1x USB2.0 |
| TF Card | 1x TF Card slot |
| Power Parameters | |
| Reset Button | 1x Pinhole reset button |
| Power Supply | DC9 ~ 36V, over-current protection, anti-reverse connection; 2 PIN terminal block and Jack connector; |
| Power Consumption | 512 MB Flash |
| LED Indicators | 9 LEDs ( Power, System, NET, SIM1/SIM2, WiFi, 3x Signal Strength) |
| Dimensions | 126 × 44 x 166 mm (L×W×H) |
| Indicators | |
| Housing | IP30 Metal |
| Installation | DIN-rail mounting Panell mounting |
| Weight | 670g |
| Physical Characteristics | |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -35 to 75°C (-31 to 167°F) |
| Environmental Limits | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Alert Tools | External RTC with Backup button battery |
| Automatic Reboot Trigger | Hardware WDT (watchdog timer) |
| Device | 1 x ER550 device with Terminal Block preinstalled |
| Reliability | |
| Antenna | 4x Mag-mount Cellular Antenna (SMA Male, 1 meter, 12dBi), 2x Mag-mount WI-FI Antenna |
| Installation Kit | Panel mount kits (DIN-rail mount kits optional) |
| Power Adapter | Panel mount kits (DIN-rail mount kits optional) |
| Package Contents | |
| OS | ElastOS (OpenWRT based) with Serial-to-IP Data Acquisition programs |
| Configuration management | WebUI, Local CLI, Remote configuration, factory reset/backup, Syslog local/remote exportNetwork Protocols |
| Gestión y Configuración | |
| Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH… |
| VPN | PPTP, L2TP, GRE, IPSEC VPN (IKEv1/IKEv2), OPENVPN protocols, Supports CA digital certificate |
| Serial to IP | Modbus RTU/TCP Data acquisition, MQTT, HTTP, OPC UA, BACnet |
| Reliability & Security | WWAN and WAN Failover, multi-layer detection and auto recovery mechanism, firewall, ACL, port mapping, virtual IP mapping, IP-MAC binding |
| Secondary Development | OpenWrt based OS with SDK support |
| Garantía | |
| Periodo de Garantía | 2 Años |
